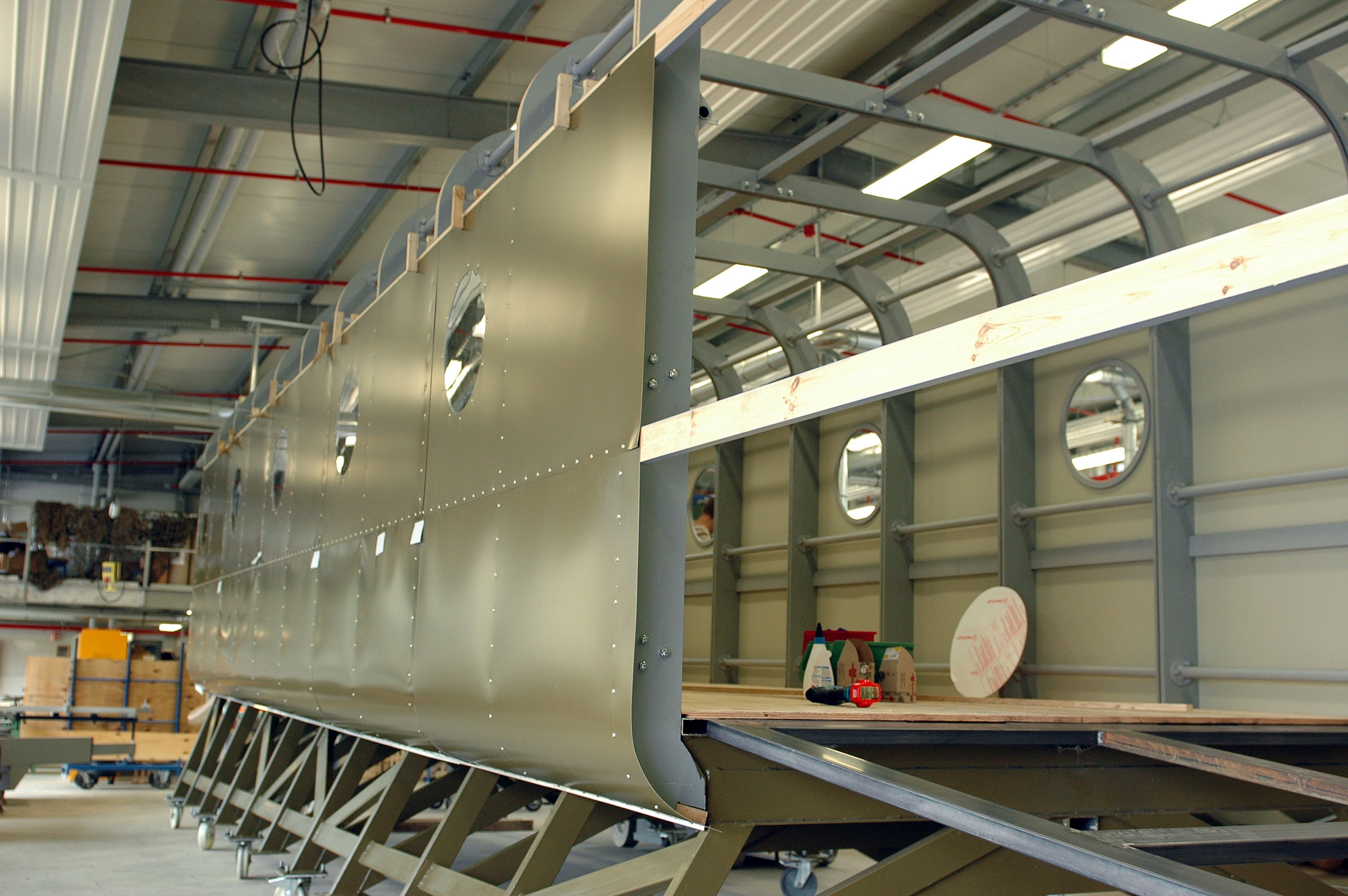

• Three CH-47s are being built by the Training Aids Production Center under the Joint Multinational Training Command in Grafenwoehr, Germany in June. These models will be sent throughout Europe to train Soldiers on jumping and loading. Using these replicas will actually save the military money, while still maintaining the integrity of a field exercise.

    090715-A-9156G-013

    Three CH-47s are being built by the Training Aids Production Center under the Joint Multinational Training Command in Grafenwoehr, Germany in June. These models will be sent throughout Europe to train Soldiers on jumping and loading. Using these...

  • A Training Aids Production Center (TAPC) employee cuts out wood to frame the tail end of the model Chinook that will be used to train Soldiers in Europe. While this portion of the helicopter won't be used for training, it will enhance the realism of the model, further immersing Soldiers in their combat-environment.

    090715-A-9156G-010

    A Training Aids Production Center (TAPC) employee cuts out wood to frame the tail end of the model Chinook that will be used to train Soldiers in Europe. While this portion of the helicopter won't be used for training, it will enhance the realism of...

  • Employees at theTraining Aids Production Center (TAPC) in Grafenwoehr, Germany  hang aluminum siding on a full-scale CH-47 model being built to train Soldiers on jump training and limited loading. Three helicopters are being built and will be sent to other 7th Army Joint Multinational Training Command facilities in Europe.

    090715-A-9156G-016

    Employees at theTraining Aids Production Center (TAPC) in Grafenwoehr, Germany hang aluminum siding on a full-scale CH-47 model being built to train Soldiers on jump training and limited loading. Three helicopters are being built and will be sent to...

  • An employee at the Training Aids Production Center (TAPC) in Grafenwoehr, Germany measures an aluminum sheet that will side one of three mock Chinooks being built to train Soldiers throughout Europe. The CH-47 is being made with plywood, steel and aluminum siding. The training device can hold up to 5,000 pounds and will help create a realistic combat environment for Soldiers.

    090715-A-9156G-046

    An employee at the Training Aids Production Center (TAPC) in Grafenwoehr, Germany measures an aluminum sheet that will side one of three mock Chinooks being built to train Soldiers throughout Europe. The CH-47 is being made with plywood, steel and...

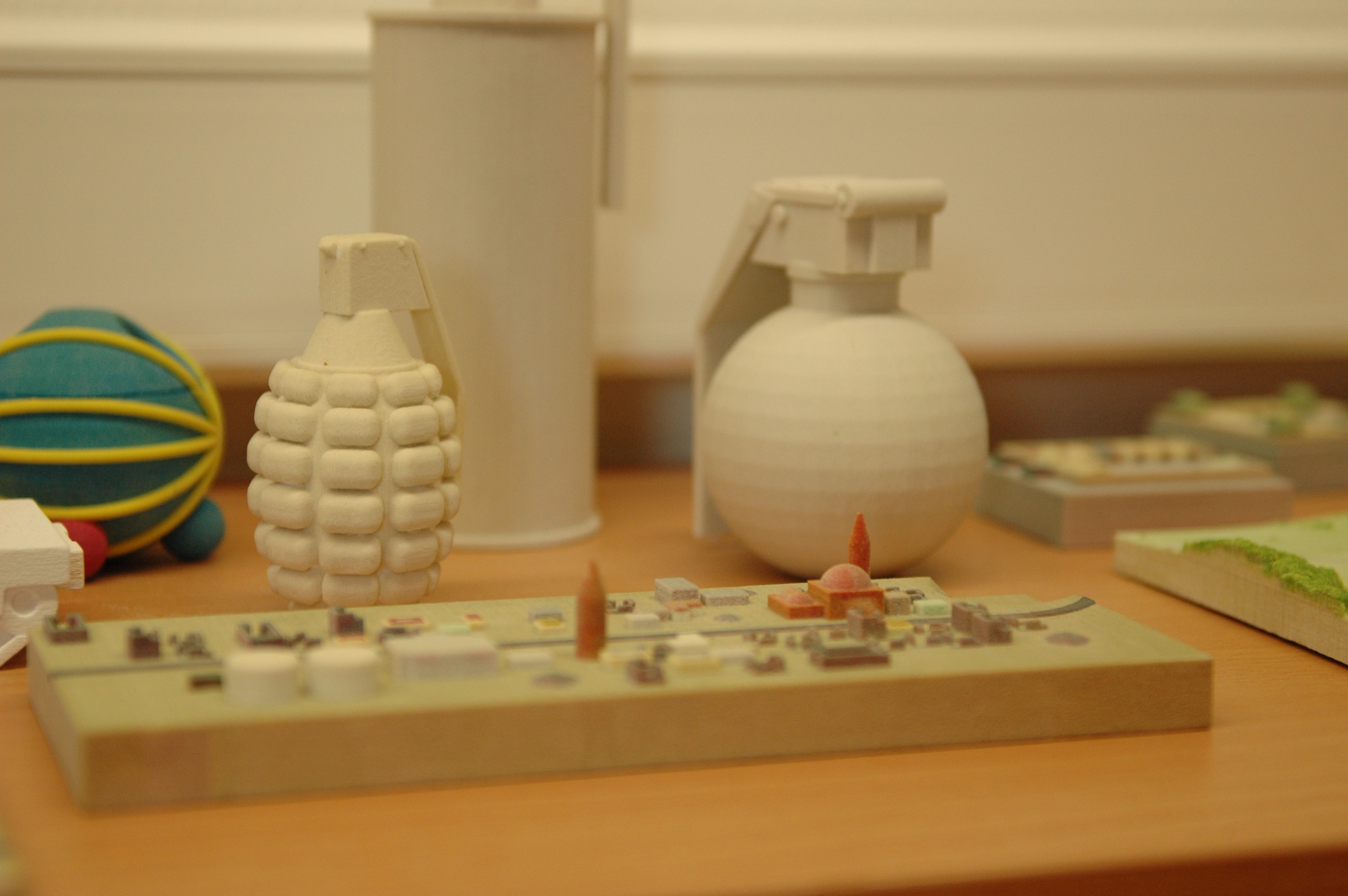

  • The Training Aids Production Center, part of the 7th Army Joint Multinational Training Command in Grafenwoehr, Germany,  produces high-quality models that are used by Soldiers training in Europe. Smaller objects, such as grenades and some maps, can be printed using 3-d printer.

    090715-A-9156G-062

    The Training Aids Production Center, part of the 7th Army Joint Multinational Training Command in Grafenwoehr, Germany, produces high-quality models that are used by Soldiers training in Europe. Smaller objects, such as grenades and some maps, can be...

GRAFENWOEHR, Germany - From hand-painted maps to full-scale replicas of CH-47s, the Joint Multinational Training Command (JMTC) uses top-quality models to create a realistic combat setting for training Soldiers.

These detailed replicas, produced by the Training Aids Production Center in Grafenwoehr, Germany, give Soldiers an opportunity to safely train on gear and prepare for deployment The most recent additions to these striking designs are three full-scale CH-47s to be used for jump exercises and limited loading throughout Europe. So far three months have been invested into the Chinooks, which are being sent to Vicenza, Bamberg and Schweinfurt.

These replicas provide an inexpensive alternative for combat preparation without sacrificing hands-on, realistic experiences.

"It can be overwhelming to attempt an efficient loading process for the first time on a Chinook with blades turning," Chief Warrant Officer James Cameron explained. "The Chinook, with its two 5,000 horsepower engines and its five screaming transmissions, puts out about 180 decibels of sound. Add to that the hurricane force winds from the rotor system and the enormous amount of heat coming off the engines...it's easy to see why this training is best perfected in a mock-up."

Since there is only one company of Chinooks available in Europe, it presents a logistical and supply challenge for units requesting aviation training.

"It has always been a challenge coordinating with the aviation units to get an aircraft to train on," Cameron added. "By having a model to use at our leisure, leaders will be able to conduct more training. This model provides a means of getting the process of air assault operations into the muscle memory of our Soldiers."

Beyond large scale aircraft, JMTC has also supported the production of model grenades and various weapons. Rubber pistols and knives are highly beneficial in military police disarmament training.

"They crack too many guns, destroy pistols, and that's costly," said German Visual Information Specialist Thomas Bartels. "To reduce this cost, it is very good to use a rubber model. We get an original, take it to pieces, and we build a model from those pieces to train the Soldiers to work with it."

The replicas may seem simple, but the process requires months of planning, designing, creating a prototype, and reevaluating a design before the final product is released. Months of thought went into designing animal IEDs that are used in Soldiers' combat-training.

The animals were designed based on current events in war zones like Iraq and Afghanistan. What started as rubber carcasses has evolved to a sleek stuffed animal that houses an IED simulator.

"We wound up with a goat, sheep and a dog," John Krollpfeiffer said. "This is filled with foam, but they hide the IED's in these things. I understand in Iraq there's a lot of dead animals [that insurgents] stuff explosives into."

Besides simulating real combat episodes, and providing more efficient training models, a Soldier also needs a good map. TAPC produces 3-D maps that further enhance Soldiers visual awareness of a country before actually deploying there.

"Maps are going to be one of our biggest hits down here - I think we'll be very busy with maps," Krollpfeiffer added. "We send the maps to various units who will be deploying - like transportation units, you name it."

Because a unit can create, design and manufacture the perfect training aid, with the help of the TAPC, the possibilities are limitless. Soldiers training in Europe are sure to get realistic training, and be better prepared for tactical movements, using non-standard training tools that represent the realities of the current operational environment.
